- When the kaper has no video feedback, the field
of view of the camera can be estimated.
-

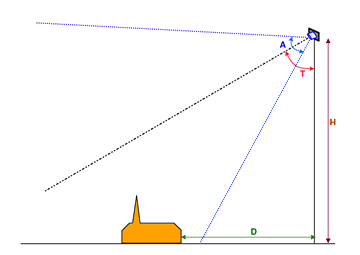

- The first step is to draw the main lines and set the
position of the camera and of the target.
- Then name the main dimensions and angles.
- "Nacelle a l'applomb" means "rig vertically
over".
-
- From that, calculations can be done, or figure can be
drawn as scaled.
-

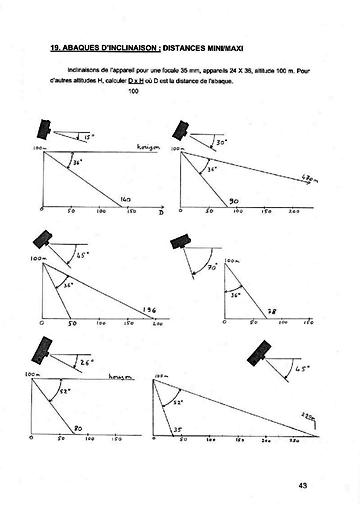

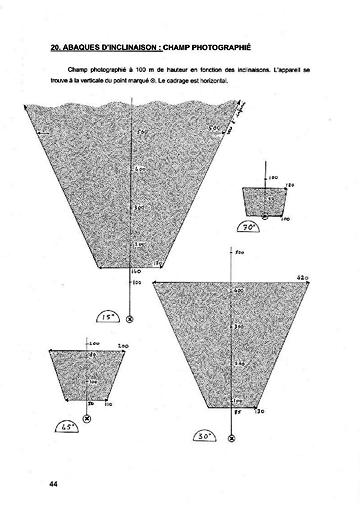

- Hereunder B&W pages were drawn in the booklet about
kap which I published in 1995 and which can be used as is
or as examples.
|
|
|
